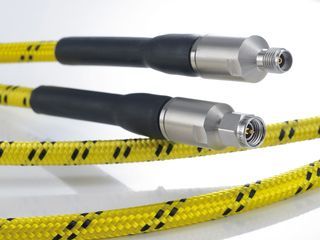

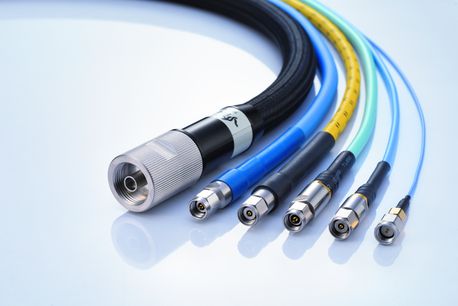

Test & Measurement Cable Assemblies

  • Extreme high frequency transmission.
  • Significant electrical performance.
  • Excellent durability and reliability.

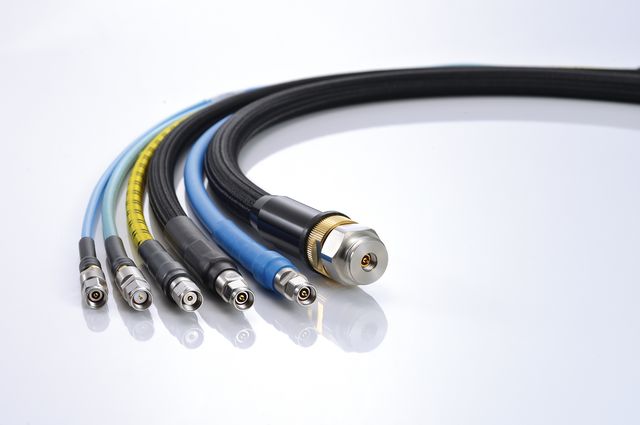

情境-CABLE SERIES

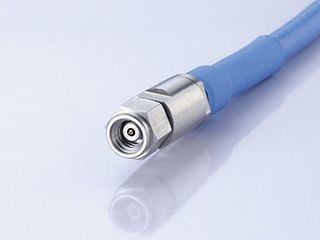

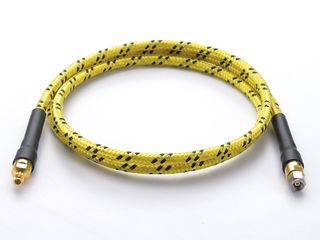

1.0mm Jack to Jack Cable Assembly 10cm



Product Specifiction

Cable Type

1.0mm

1.85mm

2.4mm

2.92mm

3.5mm

SMA

N

Impedance(Nominal)Ω

50±1

Maximum Frequency(GHz)

110

67

50

40

34

26.5

18

Overall Diameter(mm)



General Type

1.7

2.7

3.3

4.1

5.3

5.3

5.3

Flexible Type(HS)

4.2

7.1

3.3

7.1

8.3

8.3

8.3

Universal Type(HF)

4.2

7.1

7.1

7.1

7.1

7.1

7.1

Pressure –resistant Type(HP)

N/A

11.3

7.1

7.1

11.3

11.3

11.3

VSWR

Typical

1.3

1.3

1.2

1.2

1.2

1.2

1.2

Max.

1.4

1.4

1.3

1.3

1.3

1.3

1.3

Amplitude Stability (dB)

Typical

±0.1

±0.1

±0.05

±0.05

±0.05

±0.05

±0.05

Max.



±0.25

±0.1

±0.1

±0.1

±0.1

±0.1

Phase Stability(°)

Typical

±2

±10

±8

±4

±4

±4

±4

Max.



±15

±11.5

±8

±8

±8

±8

Insertion Loss(dB/M)

15

5.9

3.3

2.4

1.7

1.7

1.7

Time Delay(Nominal) (ns/M)

4.28

4.28

4.28

4.28

4.33

4.33

4.33

Velocity of Propagation(%)(Typical)

78

78

78

78

77

77

77

Minimum Bend Radius (mm)



General Type

10

15

20

20

25

25

25

Flexible Type (HS)

15

25

25

25

40

40

40

Universal Type (HF)

15

25

25

25

40

40

40

Pressure-resistant Type (HP)

N/A

40

40

40

40

40

40

Temperature Range(℃) (General Type)

-55 to 125
