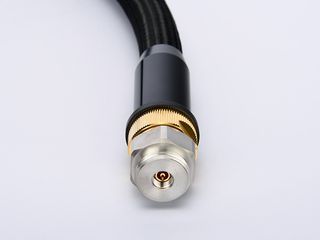

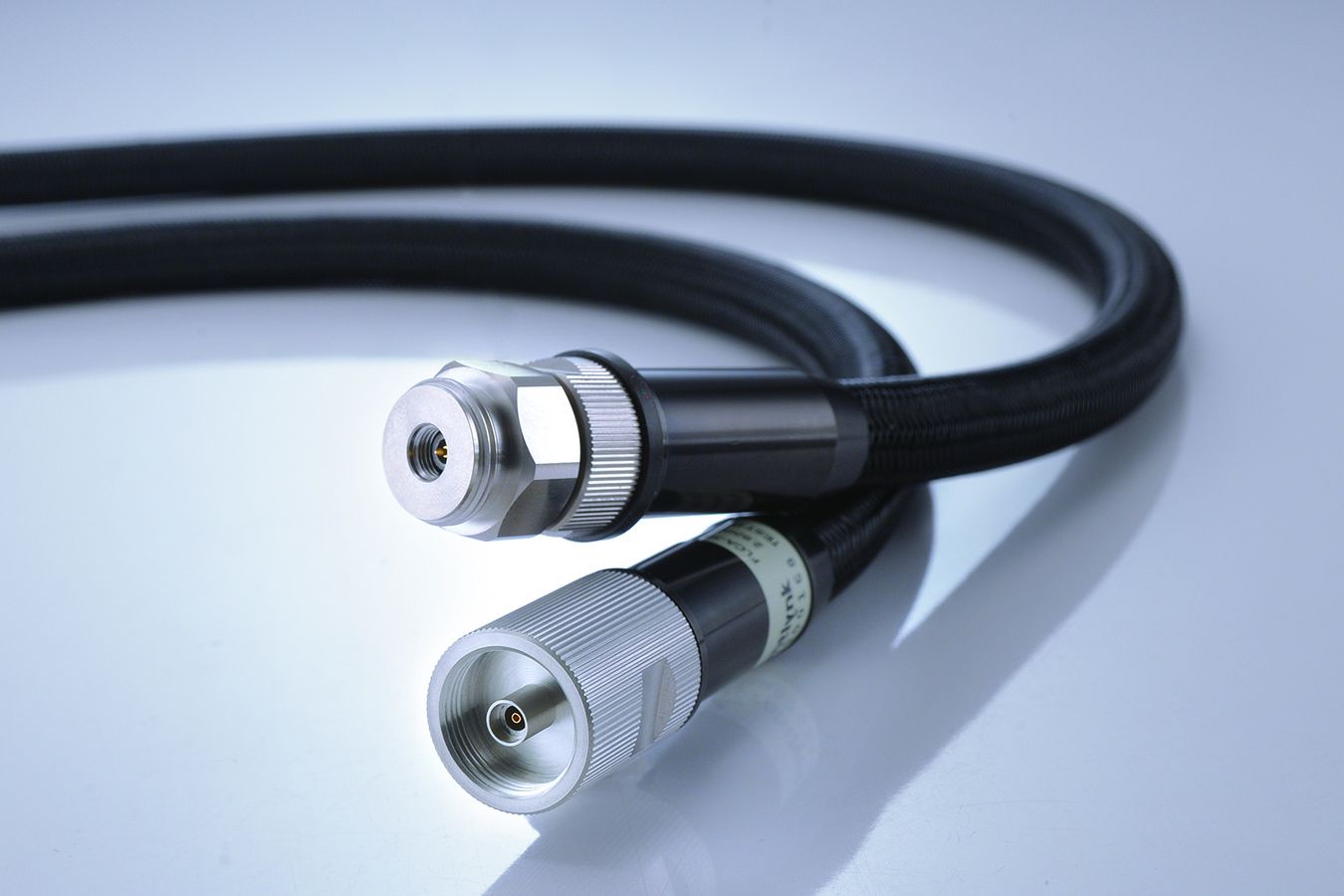

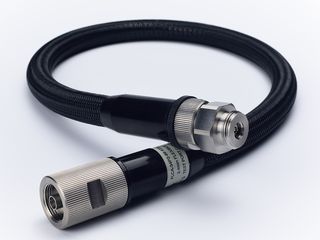

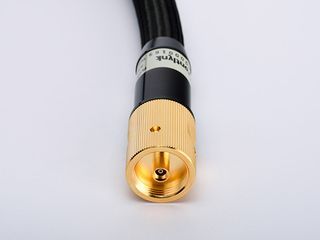

NMD Testing Cable Assemblies

NMD CABLE ASSEMBLY

Features

  • Significant durability with ruggedized connectors
  • Remarkable phase and loss stable cable assemblies
  • 3.5mm, and 2.92mm 2.4mm and 1.85mm test ports options
  • Shorter lead-time process
  • Suitable for all brands of Value network analysis.



Properties/Series

3.5mm

2.92mm

2.4mm

1.85mm

Working Frequnecy

DC~26.5GHz

DC~40GHz

DC~50GHz

DC~67GHz

VSWR(Typical/Maximum)

1.2/1.3

1.2/1.3

1.2/1.3

1.2/1.3

Phase Stability(°)(Typical/Maximum)

±2/±4

±2/±4

±2/±4.5

±4/±8

Amplitude Stability(dB) (Typical/Maximum)

±0.04/±0.1

±0.02/±0.1

±0.03/±0.1

±0.04/±0.1

Minimum bend radius

57.1mm

Temperature

Lab   conditions

Lengths(inches)

25", 36", 48" and customized
